Pipe Fittings and Connectors
Blue and New PN16 fittings, metal-insert and PP fittings, saddles, foot valves, valves and boxes. Compare codes and sizes for bulk orders.
Available for bulk orders. Include the product code, size, quantity and delivery destination in your enquiry.
Request a Bulk-Order Quote
Ertunç Plastik · Bulk OrdersFind the fitting model for the connection task
Do not treat two end dimensions, such as 32 × 1 inch, as a single diameter. The codes below are examples from current model tables; open the individual model table for all available sizes.
On narrow screens, scroll sideways to see the complete table.
| Connection task | Model | Current size and code example | Specify separately when ordering |
|---|---|---|---|
| Join two PE pipes in a straight line | Coupling — Blue PN16 Series | 20x20 Example code: KIM1020020000 | Outside diameters of both pipes |
| Join pipes with different diameters | Reducer — Blue PN16 Series | 25x20 Example code: KRE1025020000 | Outside diameter of the first and second pipe |
| Connect PE pipe to threaded equipment | Male adapter — Blue PN16 Series | 20x1/2" Example code: KDA1020012000 | Pipe outside diameter and the mating component's female thread size |
| Take a threaded branch from a pipe | Bolted tapping saddle | 25x1/2" Example code: PCT3025012000 | Pipe outside diameter, outlet thread and installation conditions |
| Open or close the flow | Ball valve | 1/2"x1/2" Example code: KVA2012012000 | Thread sizes at both ends and installation orientation |
PP threaded fittings · Foot valves for suction lines · Valve boxes · Polyethylene pipe connection guide
Include the model, genuine product code, dimensions at every end, requested piece count and delivery destination in the quotation request. Packing quantity is not an automatic minimum order. Price, stock and delivery for this group are confirmed in a written quotation.
Explore eight product groups in the Ertunç Plastik fittings range. Compare codes and sizes for Blue and New PN16 fittings, metal-insert fittings, PP threaded fittings, saddles, valves, foot valves and valve boxes when preparing a bulk order enquiry.
Blue PN16 Compression Fittings
Blue PN16 compression fittings for PE pipe, with 20–110 mm options depending on the fitting type. Check each size against its product code.
Explore products →

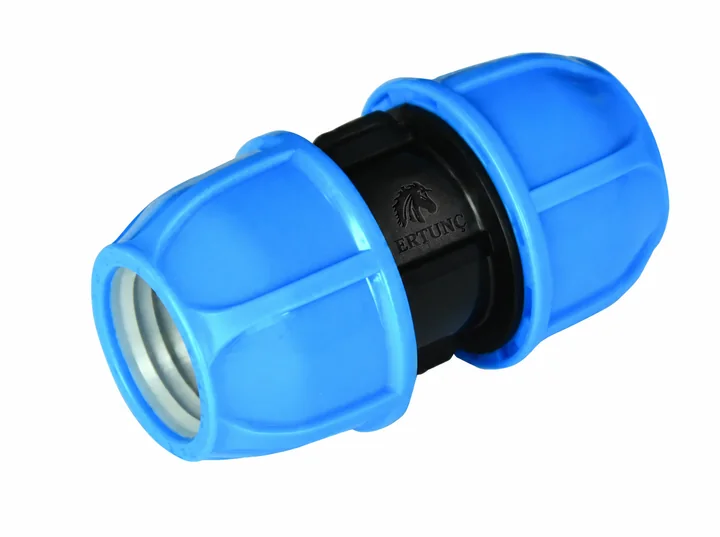

New PN16 Compression Fittings
The new PN16 series includes threaded adapters, couplings, tees, elbows, reducers and end caps. PN16 applies to this series.
Explore products →

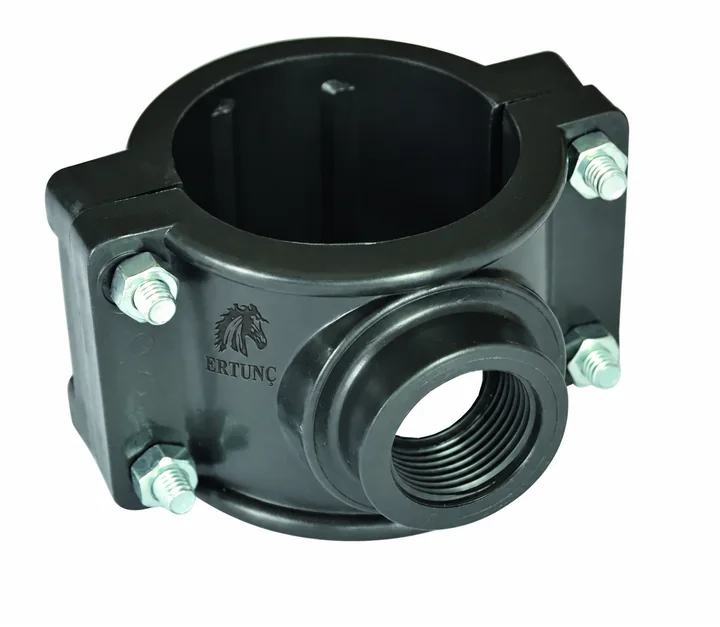

Tapping Saddles
Choose a tapping saddle by pipe outer diameter, outlet thread and single or double outlet requirement.
Explore products →

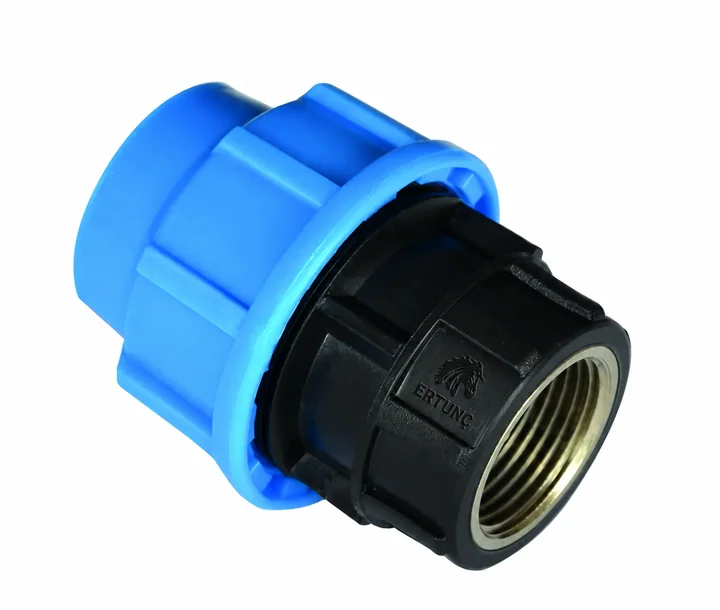

Metal-Insert Compression Fittings
Compare adapters, tees, elbows and tapping saddles with metal threaded connections by code, pipe outside diameter and thread size. A metal threaded connection does not mean the entire fitting body is metal.
Explore products →

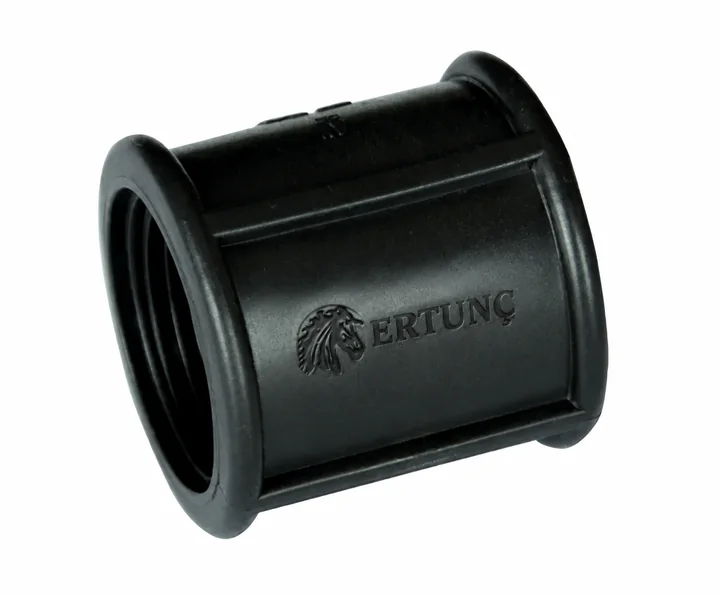

PP Threaded Fittings
Select PP threaded couplings, elbows, nipples, tees, reducers, plugs and hose connectors by thread orientation and nominal size. The double-quote mark denotes inches, not the pipe outside diameter.
Explore products →
Valves
Compare ball and compression valves by connection type and pipe size.
Explore products →

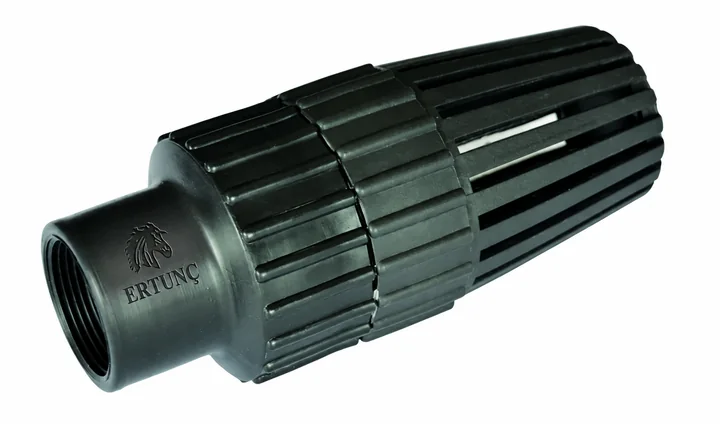

Foot Valves with Strainers
Compare foot valves in nominal connection sizes from 1" to 4". The 1"–2" and 2 1/2"–4" ranges have different body designs, shown separately. Verify the pump line and installation conditions before ordering.
Explore products →

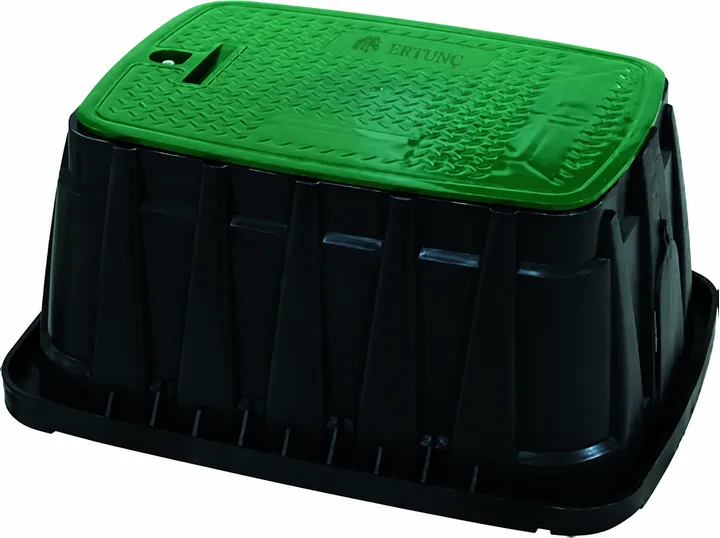

Valve Boxes
Choose a valve box by nominal cover size and installation needs; inch values are catalog designations.
Explore products →Choose the connection for its function
Choose couplings and fittings by the job they must perform, rather than by two parts appearing to have the same diameter. Start with the task: joining two PE pipes, transitioning to threaded equipment, adding a branch, shutting off flow or protecting a maintenance point. The groups below address these tasks with different components.
Pipe size, thread size and fitting shape
On the PE side, check the outside diameter in millimetres; on a threaded end, check nominal thread size and thread standard. The two dimensions in a designation such as 32 × 1″ are not two ways of writing the same diameter. A coupling continues a straight line, an elbow changes direction, a tee creates a branch, and a reducer joins different sizes.
Assess the series and service conditions together
Do not treat Blue PN16 and New PN16 Series components as interchangeable solely because of their colour or series name. Use the selected code, end connections and published size table. A PN designation alone is not approval for a fluid, temperature or complete installation.
Checks before ordering and installation
- Record the actual connection at each end: pipe outside diameter, male/female thread or hose tail.
- Assess line pressure, temperature, fluid and mounting position against the component information.
- Keep series codes and packing quantities distinct when preparing the parts list.
Information for your quotation
Prepare the quotation request with the product code, dimensions at both ends, quantity and delivery destination. Specify each connection separately for twin outlets or unequal ends. The packing quantity in the table is not an automatic minimum order; stock, packing and delivery are confirmed in the written quotation.
These selection notes provide general technical guidance. Confirm the exact material, fluid compatibility, pressure/temperature limits and installation method in the current documentation for the selected product.
Frequently asked questions
3 questions and answers covering size, use, technical checks and quotations.
Which dimensions should I check first when selecting fittings?
State the actual PE pipe outside diameter, thread size and type, and required connection at the other end separately. Colour or a family name alone does not establish compatibility.
How do I check the product code and packaging quantity?
Use the product code, size and packaging quantity from the selected model’s table together. Codes and packaging quantities for different models on the family page are not interchangeable; state the order quantity separately in the quotation.
How do I request current pricing and delivery details?
Provide the product code or model name, size, quantity and delivery destination. Current prices, stock and shipping terms for this group are confirmed in a written quotation; do not assume an unpublished price or automatic availability.
Distinguish the coupling series and sack quantity
At 25×25 and 32×32, Blue and New Series couplings have different product codes and sack quantities even when the size is the same. These four rows are actual Ertunç catalogue records.
Scroll sideways to read the full table on a small screen.
| Series and actual size | Product code | Catalogue pieces per sack |
|---|---|---|
| 25x25 Coupling — Blue PN16 Series | KIM1025025000 | 110 |
| 25x25 Coupling — New PN16 Series | KIM5025025000 | 160 |
| 32x32 Coupling — Blue PN16 Series | KIM1032032000 | 60 |
| 32x32 Coupling — New PN16 Series | KIM5032032000 | 100 |
Pieces per sack are separate from the quantity you want and any minimum order condition. Keep the product code and series when requesting a unit quotation.
Does a 25×25 coupling order use 110 or 160 pieces per sack?
Blue Series 25×25 record KIM1025025000 has 110 pieces per sack; New Series 25×25 record KIM5025025000 has 160. Select the correct series and code. These are sack quantities; requested quantity, price and minimum order conditions are separate.
2026 Export Catalogue & Technical Atlas
Explore hoses, polyethylene pipes and fittings, with product ranges, sizes and technical selection guidance in one catalogue.
PDF · English · 84 pages · 13.2 MB · 2026This export catalogue does not include prices. Request a quotation for current pricing and delivery terms. Price list
