Blue PN16 Compression Fittings
Download product sheet (PDF)Blue PN16 compression fittings for PE pipe, with 20–110 mm options depending on the fitting type. Check each size against its product code.
Available for bulk orders. Include the product code, size, quantity and delivery destination in your enquiry.
Request a Bulk-Order Quote
Ertunç Plastik · Bulk OrdersBlue PN16 compression fittings for PE pipe, with 20–110 mm options depending on the fitting type. Check each size against its product code.

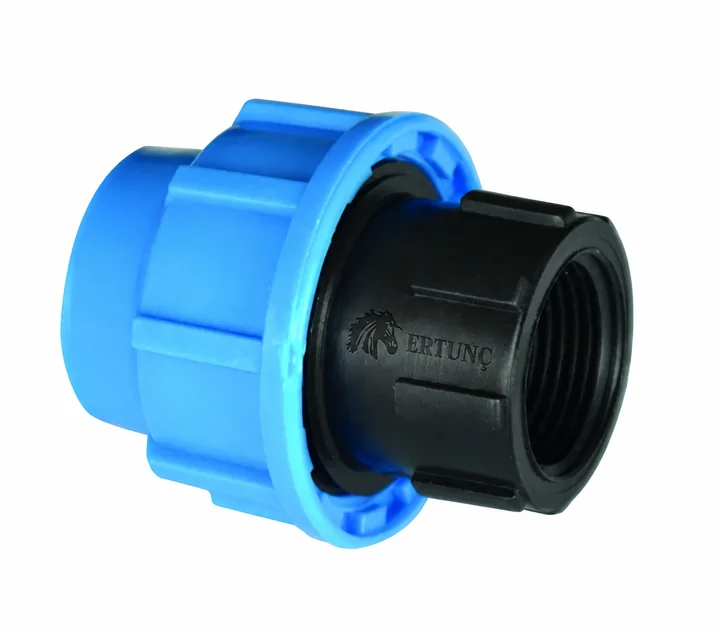

Female adapter
Connects a PE pipe end to male-threaded equipment. Select the pipe outside diameter and female thread size separately.
18 catalogue options →

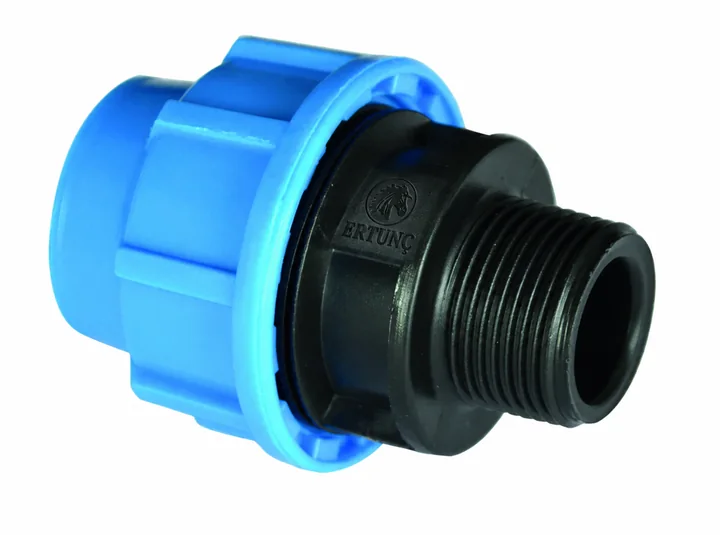

Male adapter
Connects PE pipe to a female-threaded valve, filter or component. Pipe diameter and thread size are different measurements.
21 catalogue options →Coupling
Joins two PE pipe ends of the same outside diameter in a straight line. Both ends of a 63×63 mm coupling are for 63 mm OD pipe.
9 catalogue options →

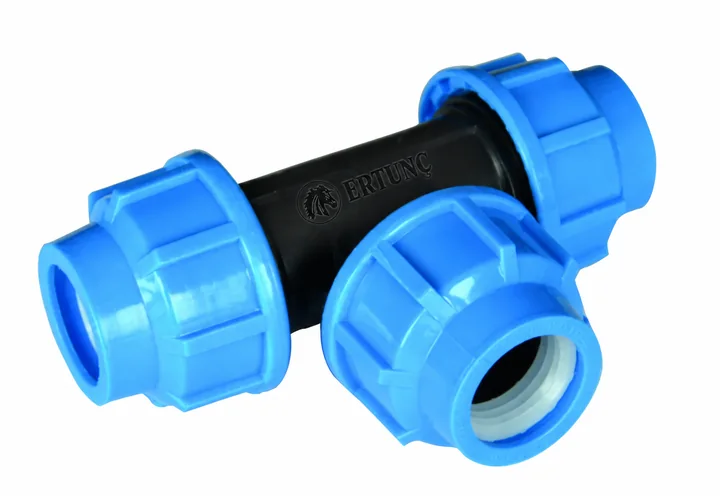

Compression tee
Provides three equal-size connections for branching a line. Check all three pipe diameters and the space required for installation.
9 catalogue options →

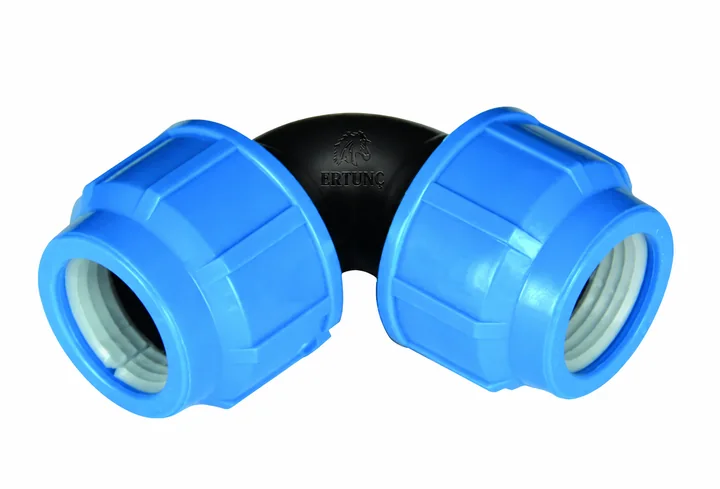

Compression elbow
Changes the direction of a pipe run. Measure the outside diameter at both ends and the available installation space.
9 catalogue options →

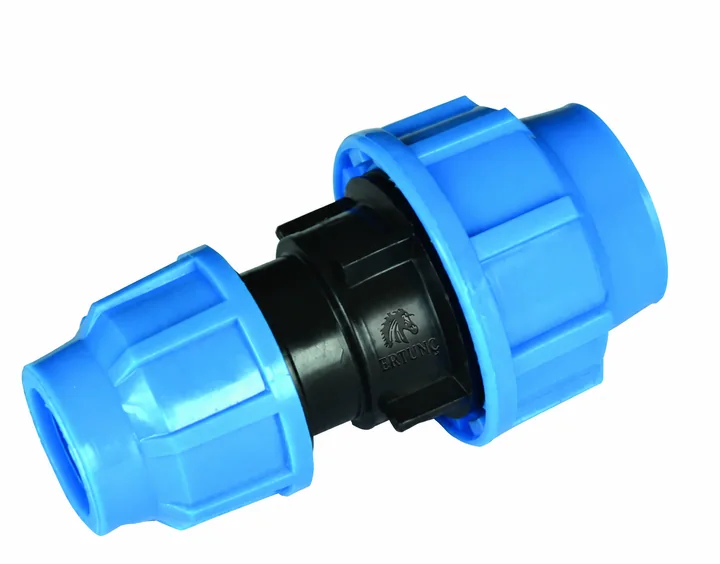

Reducer
Joins PE pipes of different outside diameters. The size 63×50 mm identifies the two pipe ends, not the pressure rating.
24 catalogue options →

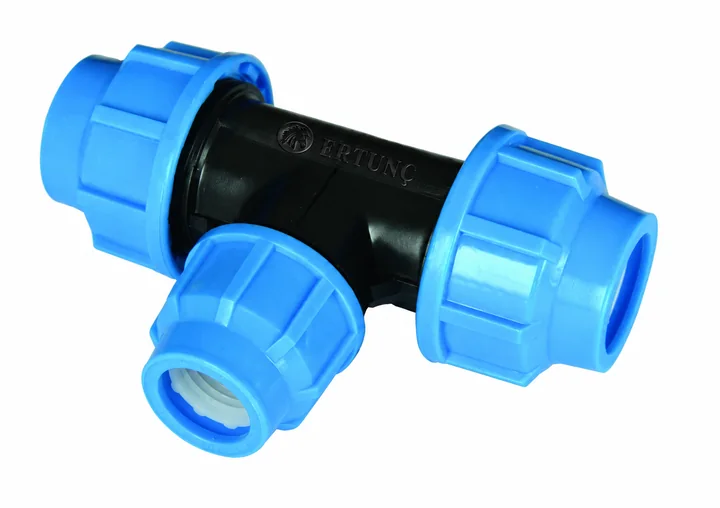

Reducing tee
Creates a branch with a different pipe diameter. Confirm the order of all three dimensions against the product code.
22 catalogue options →

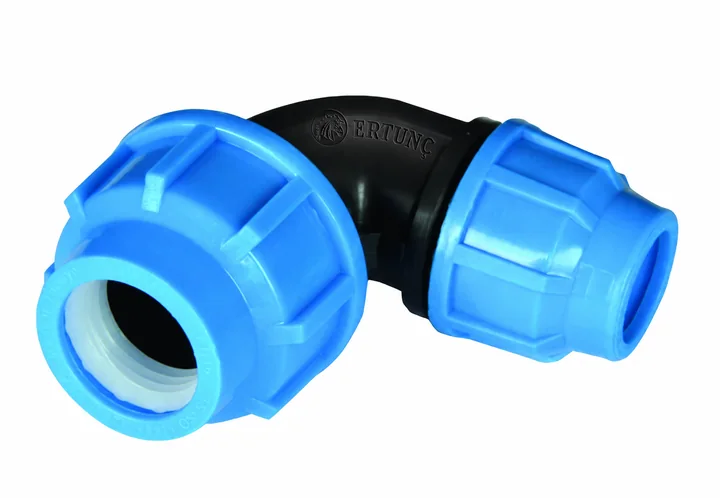

Reducing elbow
Combines a change of direction with a change of diameter. Check both pipe sizes and the required installation direction.
7 catalogue options →

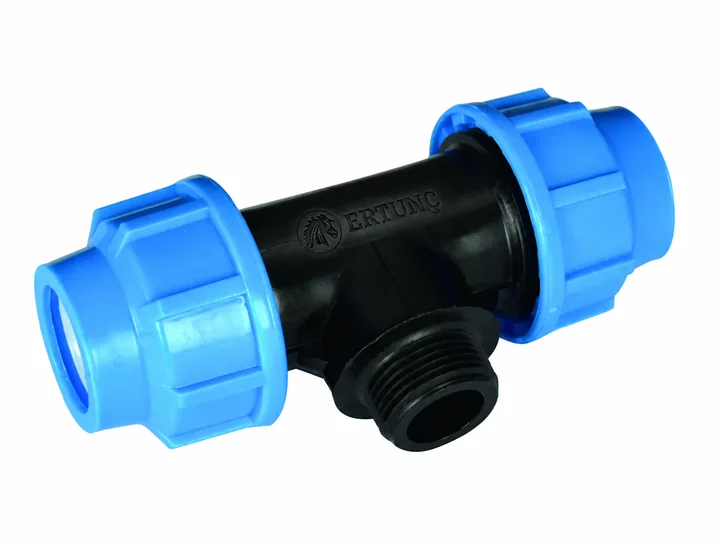

Male threaded tee
Creates a male-threaded branch on a PE line. Check the centre outlet thread independently of the main pipe diameter.
20 catalogue options →

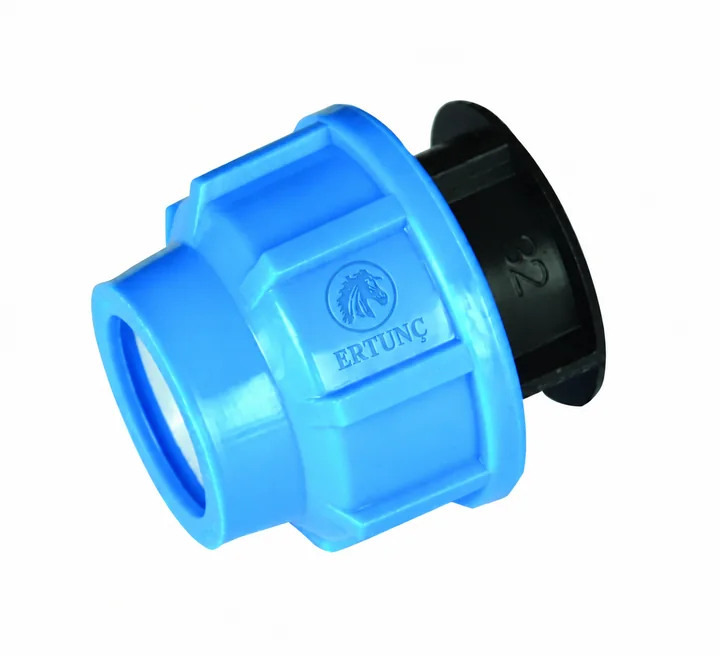

End cap
Closes an open PE pipe end. The end-cap size must match the pipe outside diameter.
9 catalogue options →

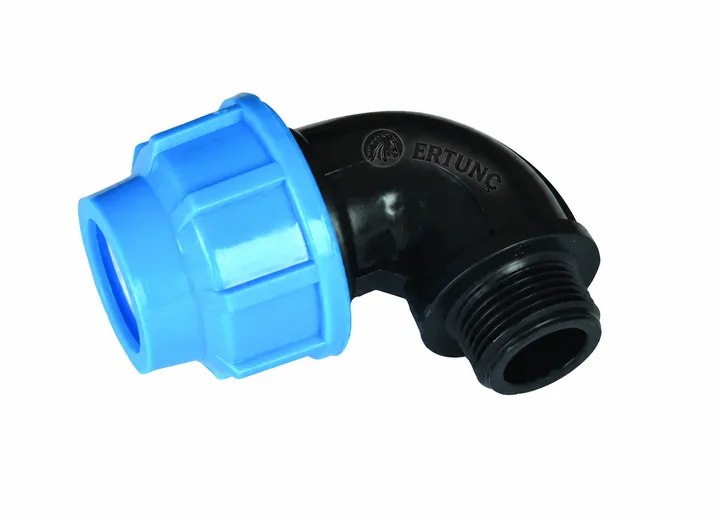

Male threaded elbow
Changes direction while connecting to female-threaded equipment. Specify pipe outside diameter and male thread size together.
19 catalogue options →

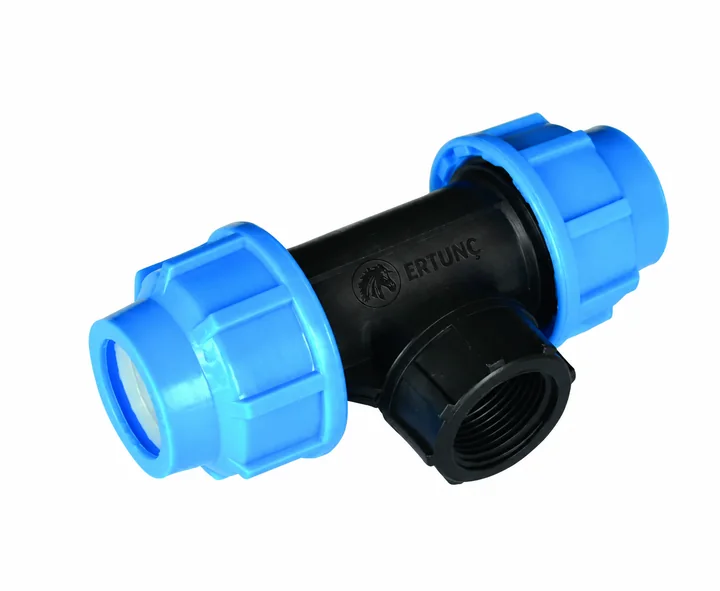

Female Threaded Tee
Creates a female-threaded branch on a PE line. Pipe ends are specified in millimetres and the threaded outlet in inches.
24 catalogue options →

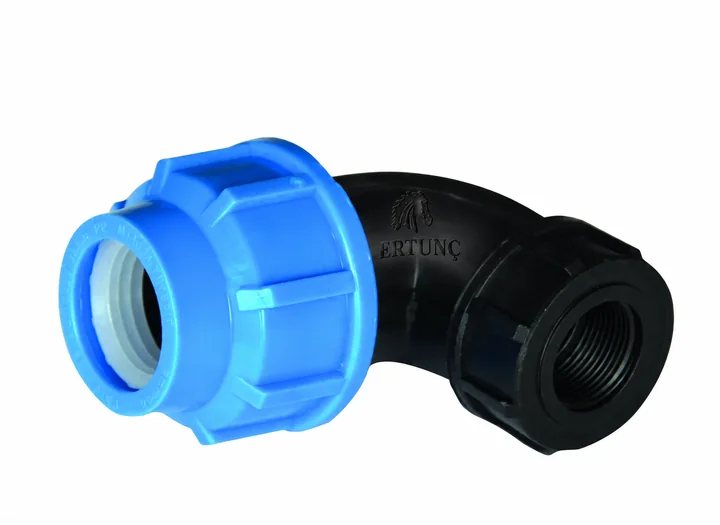

Female Threaded Elbow
Changes direction while connecting to male-threaded equipment. Check pipe OD, thread size and installation clearance.
18 catalogue options →Choose the connection for its function
The Blue PN16 Series includes straight and reducing connections alongside male- and female-threaded transitions. “Blue coupling” alone is not a complete specification: select the component shape, both end sizes and series-specific code together.
Build a precise parts list for the line
A coupling provides a straight joint, a tee creates a branch, an elbow turns the line, and a cap is considered for a compatible end closure. Check the thread orientation on threaded tees and elbows. Size availability can differ between components, so use the individual product table rather than assuming the entire family range applies.
Comparing Blue and New Series
The same nominal size and PN16 designation do not establish identical geometry or assembly details. Compare the required component in each series’ code and dimension tables. When adding to an existing installation, do not infer the series or connection standard from appearance.
Pipe and fitting operate as one connection
The millimetre dimension must match the PE pipe outside diameter; pipe colour does not substitute for a material declaration or drinking-water documentation. Check the seal contact surface, pipe-end preparation and insertion depth using the installation instructions. PN16 is not an unchanged operating allowance for every temperature and fluid.
Checks before ordering and installation
- Measure the existing pipe outside diameter and record its markings and product code.
- For a threaded end, confirm male/female form, nominal size and thread standard.
- Match tightening, support and testing methods to the selected series instructions.
Information for your quotation
Prepare the quotation request with the product code, dimensions at both ends, quantity and delivery destination. Specify each connection separately for twin outlets or unequal ends. The packing quantity in the table is not an automatic minimum order; stock, packing and delivery are confirmed in the written quotation.
These selection notes provide general technical guidance. Confirm the exact material, fluid compatibility, pressure/temperature limits and installation method in the current documentation for the selected product.
Frequently asked questions
3 questions and answers covering size, use, technical checks and quotations.
How do I compare Blue PN16 and New Series fittings?
Check each series’ product code, connection type and dimensions in its own table. Colour or the PN16 marking alone does not mean two parts are interchangeable for installation.
How do I check the product code and packaging quantity?
Use the product code, size and packaging quantity from the selected model’s table together. Codes and packaging quantities for different models on the family page are not interchangeable; state the order quantity separately in the quotation.
How do I request current pricing and delivery details?
Provide the product code or model name, size, quantity and delivery destination. Current prices, stock and shipping terms for this group are confirmed in a written quotation; do not assume an unpublished price or automatic availability.
