Metal-Insert Compression Fittings
Download product sheet (PDF)Compare adapters, tees, elbows and tapping saddles with metal threaded connections by code, pipe outside diameter and thread size. A metal threaded connection does not mean the entire fitting body is metal.
Available for bulk orders. Include the product code, size, quantity and delivery destination in your enquiry.
Request a Bulk-Order Quote
Ertunç Plastik · Bulk OrdersCompare adapters, tees, elbows and tapping saddles with metal threaded connections by code, pipe outside diameter and thread size. A metal threaded connection does not mean the entire fitting body is metal.
Metal-Insert Female Threaded Adapter
Connects a PE pipe end to male-threaded equipment. Select the pipe outside diameter and female thread size separately.
7 catalogue options →

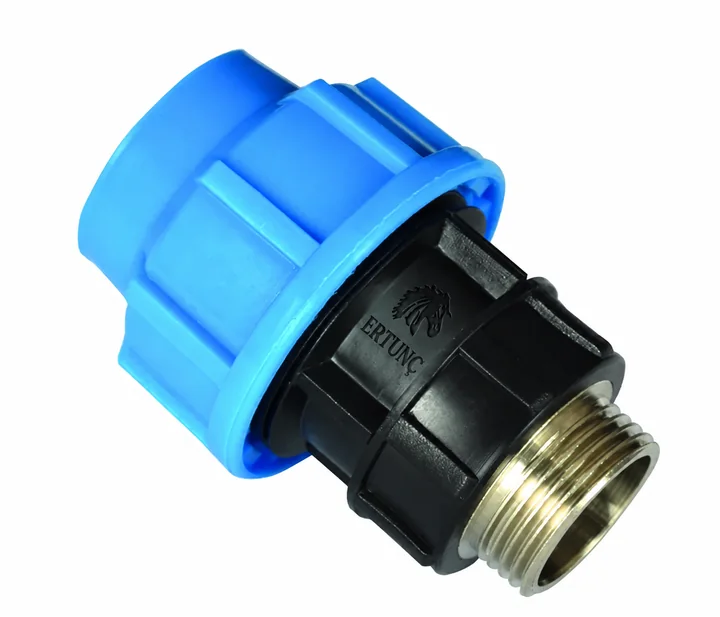

Metal-Insert Male Threaded Adapter
Connects PE pipe to a female-threaded valve, filter or component. Pipe diameter and thread size are different measurements.
7 catalogue options →

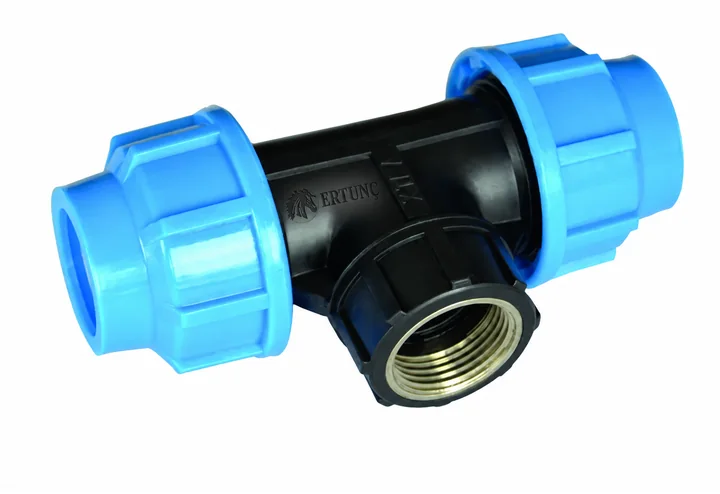

Metal-Insert Female Threaded Tee
Creates a female-threaded branch on a PE line. Pipe ends are specified in millimetres and the threaded outlet in inches.
6 catalogue options →

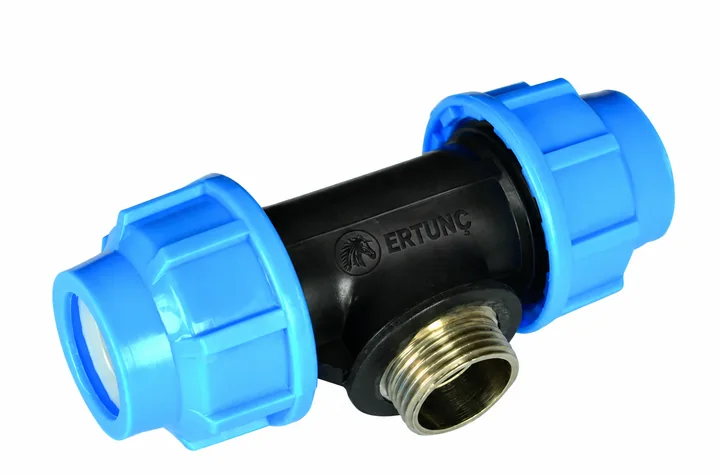

Metal-Insert Male Threaded Tee
Creates a male-threaded branch on a PE line. Check the centre outlet thread independently of the main pipe diameter.
6 catalogue options →

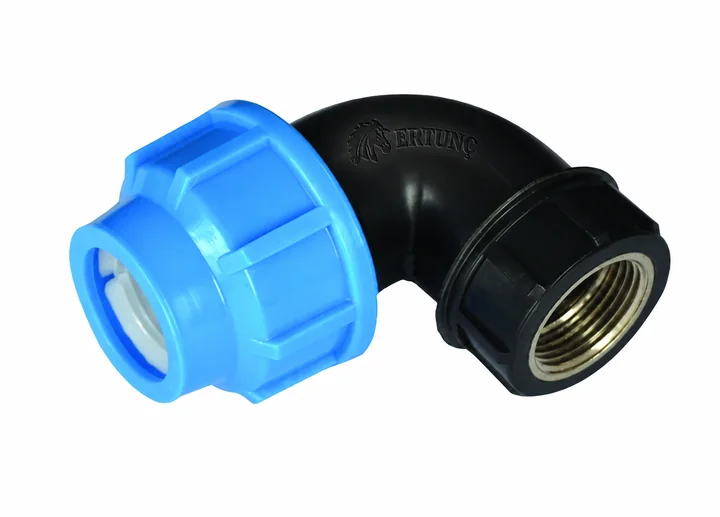

Metal-Insert Female Threaded Elbow
Changes direction while connecting to male-threaded equipment. Check pipe OD, thread size and installation clearance.
6 catalogue options →

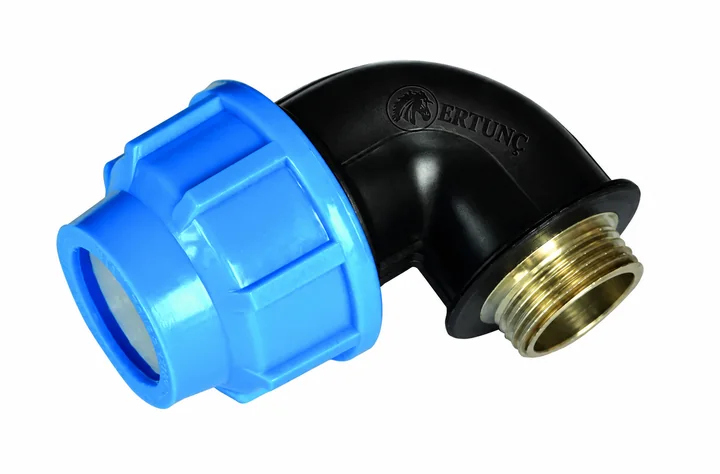

Metal-Insert Male Threaded Elbow
Changes direction while connecting to female-threaded equipment. Specify pipe outside diameter and male thread size together.
6 catalogue options →

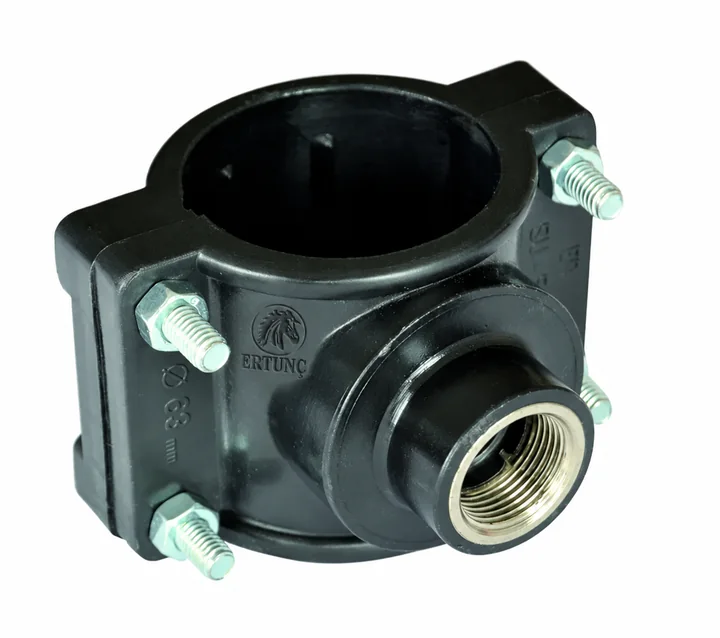

Metal-Threaded Tapping Saddle
A tapping saddle fitted around a PE main to provide a metal threaded outlet. Select the main pipe OD, listed from 32 to 110 mm, together with the outlet thread; available outlets vary by pipe size.
19 catalogue options →Choose the connection for its function
Metal-threaded fittings are considered for transitions between a PE-pipe connection and threaded equipment. This catalogue includes adapters, tees, elbows and tapping saddles. “Metal-threaded” does not mean that the entire body is metal or that the component suits every fluid.
Male and female thread functions
Equipment with a female port may require a male-threaded fitting, while a male port may require a female fitting; dimensions and thread standard still need verification. State the pipe-side millimetre dimension separately from the threaded end’s inch designation. A few turns of apparent engagement do not prove the thread standards match.
Assess the metal end, seal and body together
Do not judge fluid, temperature or mechanical-load suitability from the appearance of the metal end. Check the body, metal section and sealing element as one assembly. Plan supports so that the weight of a heavy valve or appliance is not carried by the joint.
Controlled assembly of threaded joints
Start the thread squarely; do not force incompatible parts into place. The sealing material and tightening method must suit both the plastic and metal sides. Keep the connection accessible for inspection before insulating or enclosing it.
Checks before ordering and installation
- Specify the shape, pipe diameter, thread size and male/female form on one order line.
- Compare materials and thread standard with the connected equipment documentation.
- Verify support, sealing and tightening requirements for the chosen model.
Information for your quotation
Prepare the quotation request with the product code, dimensions at both ends, quantity and delivery destination. Specify each connection separately for twin outlets or unequal ends. The packing quantity in the table is not an automatic minimum order; stock, packing and delivery are confirmed in the written quotation.
These selection notes provide general technical guidance. Confirm the exact material, fluid compatibility, pressure/temperature limits and installation method in the current documentation for the selected product.
Frequently asked questions
3 questions and answers covering size, use, technical checks and quotations.
Which connection details are needed for metal fittings?
State the product code, both end sizes and the thread type where applicable. Verify material, sealing and operating-condition compatibility using information for the selected model.
How do I check the product code and packaging quantity?
Use the product code, size and packaging quantity from the selected model’s table together. Codes and packaging quantities for different models on the family page are not interchangeable; state the order quantity separately in the quotation.
How do I request current pricing and delivery details?
Provide the product code or model name, size, quantity and delivery destination. Current prices, stock and shipping terms for this group are confirmed in a written quotation; do not assume an unpublished price or automatic availability.
